Product Overview

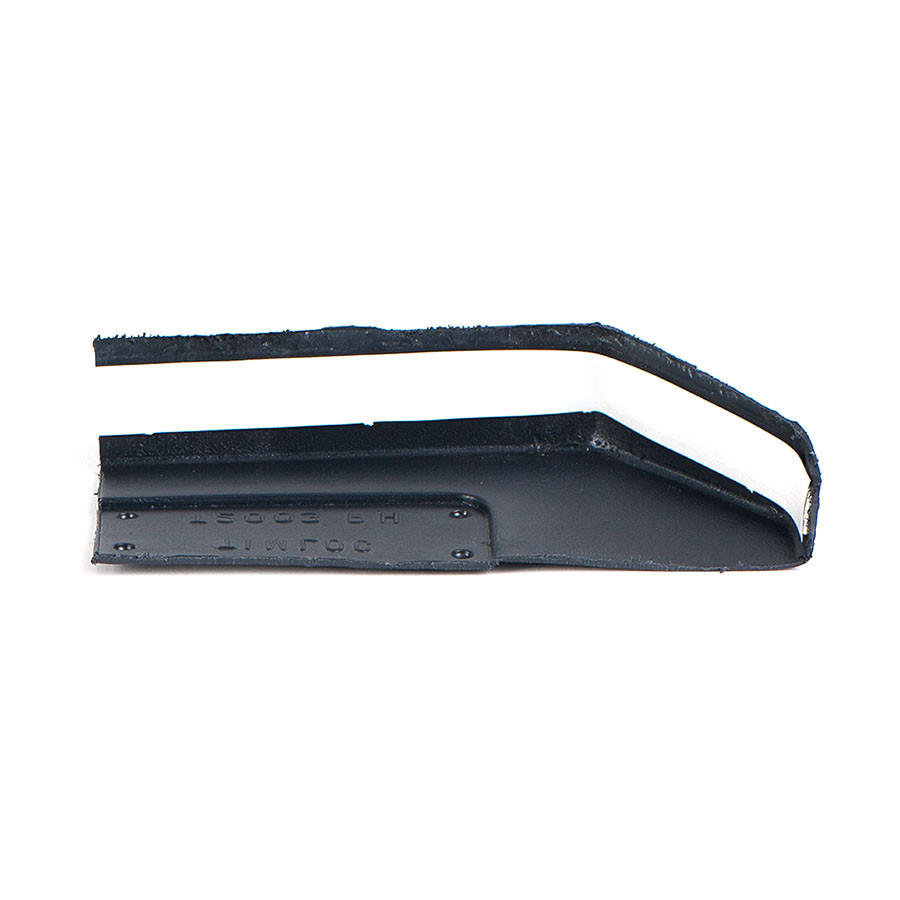

The Timloc 2003 Horizontal Cavity Tray Stopend Right Hand is designed for use at the abutment of a flat roof, lean-to or mono pitch roof with a cavity wall. It can be used over airbricks, cavity liners, ducts, meter boxes etc. on external walls not exceeding 102.5mm in thickness, built from standard brickwork, blockwork or stone.
Product Features:
- Right Hand Tray: This stopend is designed for use on the right hand side of the cavity tray.
- BBA Approved: The Timloc 2003 Horizontal Cavity Tray Stopend Right Hand is BBA approved, ensuring it meets the highest standards of quality and performance.
- 2mm Medium Density Polypropylene: The stopend is made from 2mm medium density polypropylene, making it durable and resistant to weathering.
- Black Finish: The stopend has a black finish, which blends in well with most building materials.
- Roof Pitch Marks on Tray Upstand: The stopend features roof pitch marks on the tray upstand to provide installation guidance.
- Manufactured in the UK to BS EN IS0 9001 and BS EN IS0 14001: The Timloc 2003 Horizontal Cavity Tray Stopend Right Hand is manufactured in the UK to BS EN IS0 9001 and BS EN IS0 14001, ensuring high quality and environmental standards.
Stop ends are fitted at the start and finish of the cavity tray run to seal off the open ends and prevent water running back into the cavity. Components are supplied cut to required cavity widths of: 50-74mm, 75-99mm and 100-125mm. Please state the required width at the time of order.
Specifications
TIMLOC SYSTEM 2000 HORIZONTAL CAVITY TRAY STOPEND RH, Black,
Product code: B013711
