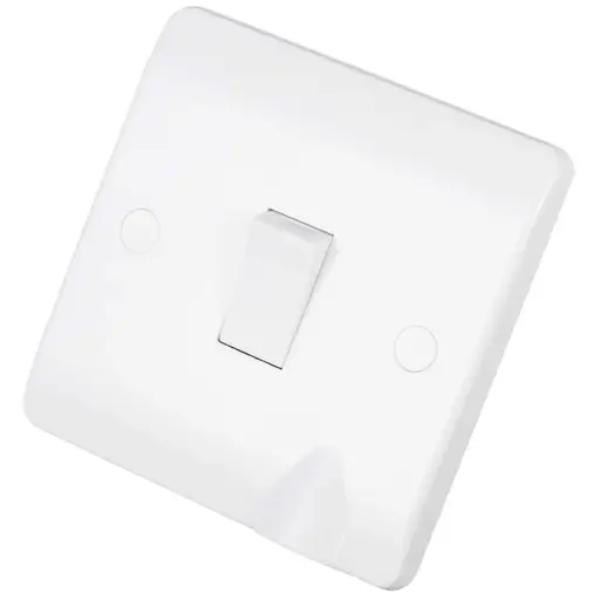

The Scolmore Double Pole Switch is a reliable electrical component designed for wall mount applications.

Product Features:

• Double Pole Switch: Provides a double pole switching mechanism.
• Contact Material: Utilises brass contacts for effective conductivity.
• Voltage Rating: Rated for AC voltage up to 230V.
• Current Rating: Capable of handling contact current up to 20A.
• Actuator Colour: Features a white actuator.
• Mounting: Designed for wall mount installation.
• IP Rating: Offers IP20 protection.
• Terminal Type: Equipped with screw terminals.
• Terminal Capacity: Accommodates terminal capacity up to 2.5mm?.
• Case Material: Constructed with nylon and urea case materials.
• Certifications: Complies with BS EN and RoHS standards.
• Temperature Range: Operates within a temperature range of -5 to 40?C.
• Panel Cut Out Size: Requires a panel cut out size of 86 x 9.5 x 86 mm.

This switch is certified to meet BS EN and RoHS standards, ensuring quality and safety.
