Product Overview

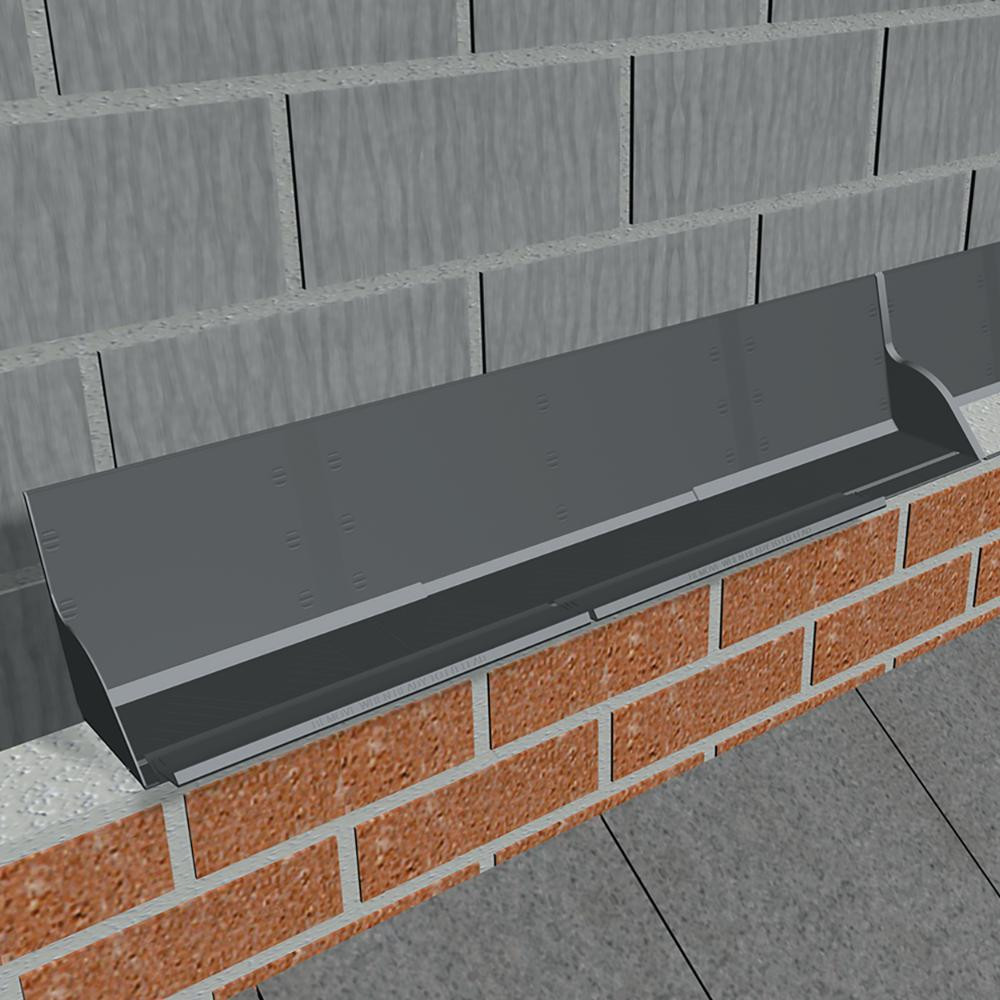

The Manthorpe GW295 Horizontal Tray is designed for use in straight horizontal abutments in new build situations. It features integral stop ends and a hook feature, eliminating the need for overlapping trays and providing a total effective length of 900mm.

Product Features:

  • Unique Front Mortar Clips: These clips can be easily removed once the mortar has set, leaving a 25mm deep aperture for lead insertion and securing with lead wedges.
  • Weep Vent Compatibility: The tray requires the use of two G950 Weep Vents or G951 Peep Weeps, spaced at 450mm centres, to meet current NHBC standards for water drainage.
  • Lead Options: The GW295 Horizontal Tray can be supplied with short, standard, or long lead stapled and sealed to the tray in either code 4, code 5 (special order) lead or a lead replacement.

This tray is a reliable and efficient solution for horizontal abutments in new construction projects.

Specifications

Manthorpe Horizontal Tray GW295, Black, 900 x 102.5 x 155mm

Product code: B034046
