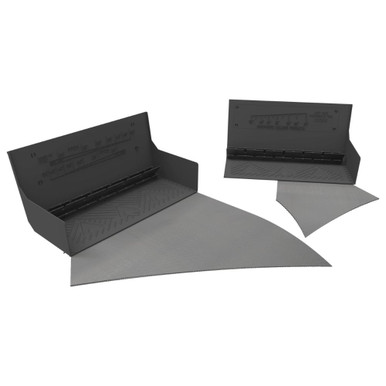

The Manthorpe Catchment Tray GW293 is designed for use in Stepped Tray systems and can be used with all standard brickwork details. It is located at the lowest point of the abutment and features up stands at both ends to collect and safely divert water from the trays above.

Product Features:

• Weep Vent: A G950 Weep Vent must be used in conjunction with this tray to drain the collected water away.
• Mortar Clip: The tray has a unique front mortar clip that can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.
• Mortar Trap: The tray also features an injection moulded mortar trap which ensures a clear water path by reducing the risk of mortar droppings and other debris completely blocking the tray.
• Lead Options: The GW293 Catchment Tray can also be supplied with short or long lead securely attached with staples and sealant in either code 4, code 5 (special order) lead or a lead replacement.

The Manthorpe Catchment Tray GW293 is a vital component of a Stepped Tray system, ensuring effective water management and protecting your building from water damage.
