Product Overview

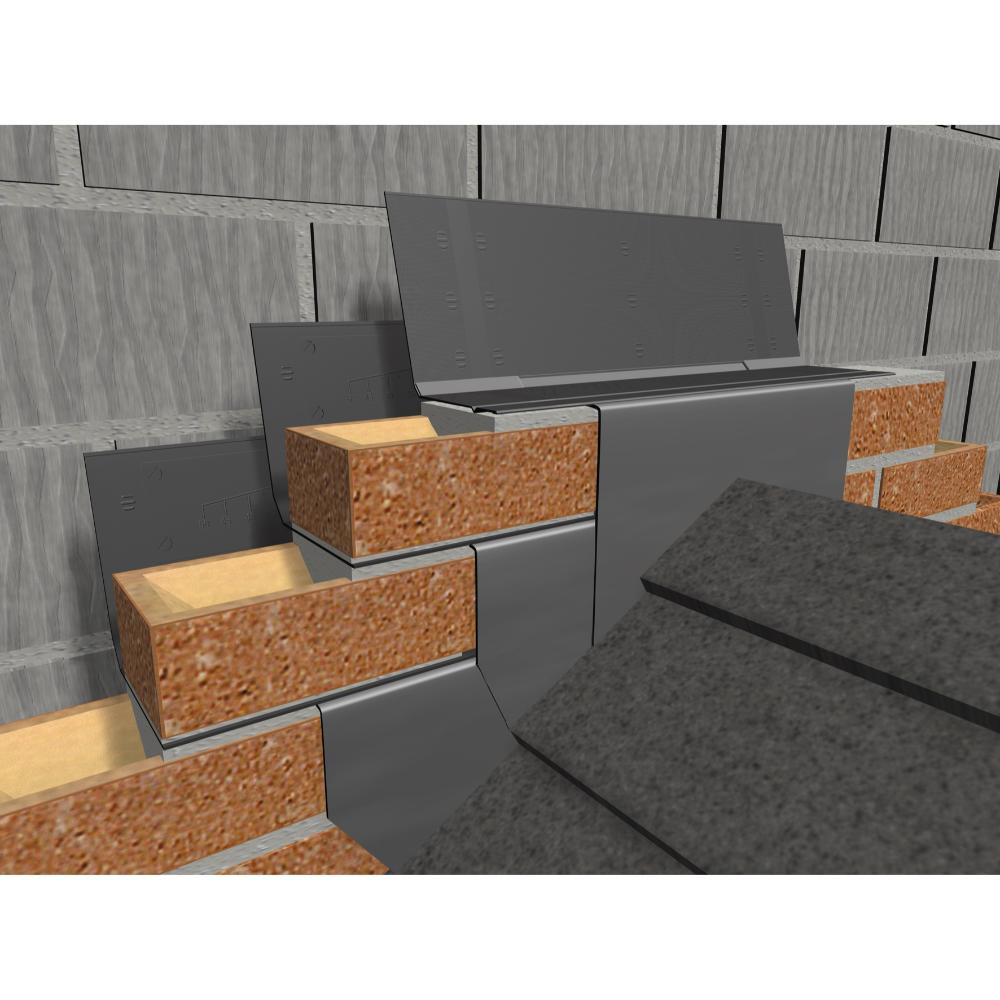

The Manthorpe Apex Tray GW290 is designed for use in Stepped Tray systems and can be used with all standard brickwork details. It is the last tray to be fitted and goes at the top of the abutment. The tray has no up stands at either end and allows the water to be evenly dispersed down either side of the abutment.

Product Features:

  • Unique Front Mortar Clip: This can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.
  • Lead Options: The GW290 Apex Tray can be supplied unleaded or with lead stapled and sealed to the tray in either code 4, code 5 (special order) lead or a lead replacement.
  • Dimensions: 731mm (Length) x 102.5mm (Width) x 155.0mm (Height)
  • Colour: Black

The Manthorpe Apex Tray GW290 is a high-quality product that is designed to provide a long-lasting and reliable solution for your building needs.

Specifications

Manthorpe Apex Tray GW290, Black, 731 x 102.5 x 155mm

Product code: B034033
