Product Overview

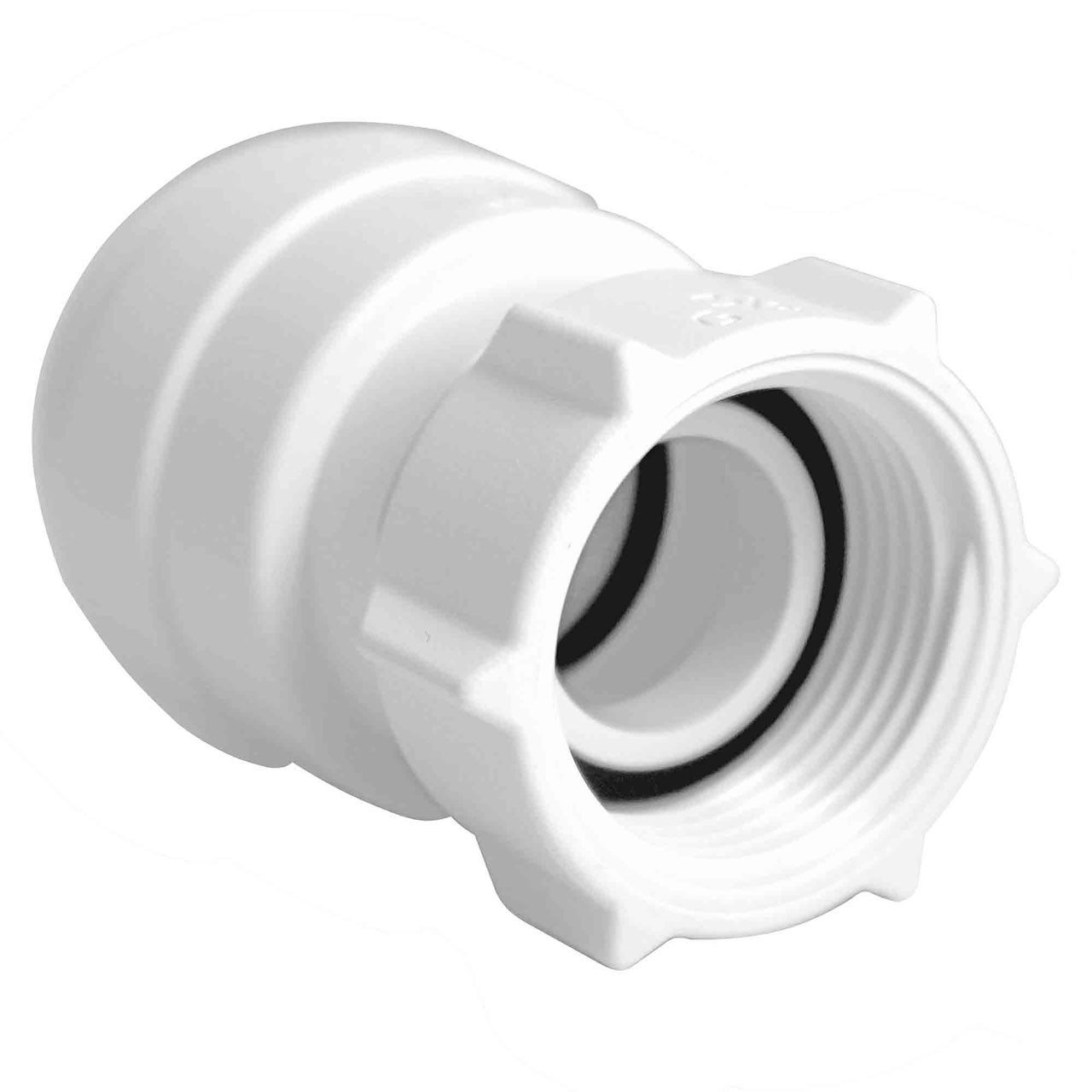

JG speedfit female coupler tap connector for connecting copper or plastic pipes to a male thread fixture/appliance. Female couplers are ideal for connecting taps and toilets. Hand-turn the push-fit fitting onto the thread after the fitting is fully inserted into the pipe. The connection can be demounted by pushing the collet towards the push-fit fittings body and pulling the pipe.
The JG speedfit female coupler tap connector is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools. Designed, manufactured and assembled in the UK.
Speedfit Features
- Push-fit and demountable connections
- Suitable for hot and cold water and central heating systems
- Grip and Seal connection
- Lead free and non toxic
- No scale build up and Corrossion Free
- BSI and WRAS approved
- Pipes Speedfit fittings can be used with Copper pipe to BS EN 1057 and Speedfit Barrier Pipe to BS7291.
- Speedfit fittings CANNOT be used on stainless steel pipe.
- Standards Speedfit products are designed and manufactured under a fully integrated system assessed by B.S.I. to BS EN ISO9001. They are approved by the Water Regulations Advisory Scheme and BBA. Speedfit PEM, PSE and SFM Fittings and Speedfit Barrier Pipe are kitemarked to BS7291 Parts 1, 2 and 3, Class S (Licence No. KM39767).
Applications
- Mains fed and indirect cold water systems
- Vented and unvented hot water systems
- Vented and sealed central heating systems
- DO NOT USE FOR Gas, fuel oil or compressed air applications.
Connection to compression fitting
Many, but not all, compression fittings are suitable for use with plastic fittings and pipe. Users should therefore check for compatibility. Compression fittings with short tube stop depth or hard olives should not be used with plastic fittings or pipe. When using compression fittings with Speedfit pipe, a Standard Pipe Insert (prefix TSM) must be used to withstand the compressive pressure of the olive. The olive must be located within the length of the pipe insert and the pipe fully inserted into the fitting. The connection should not need more than 2 full turns after the olive has gripped the pipe. Copper olives are preferable to brass olives.
Specifications
JG Speedfit Fem Coupler Tap Conn 22x3/4
Product code: L010626
